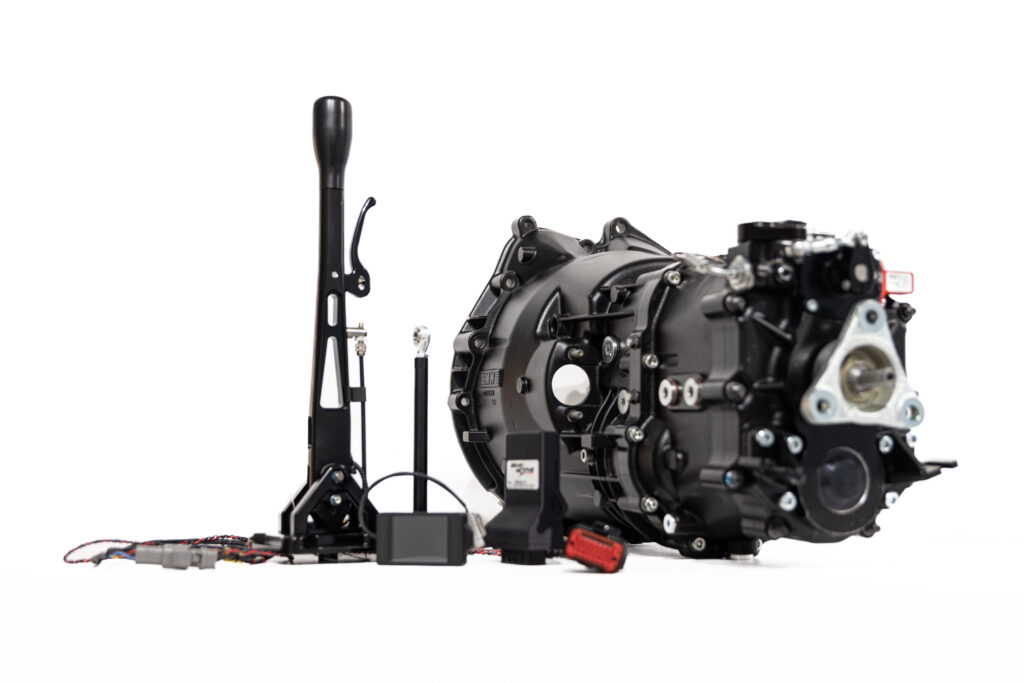

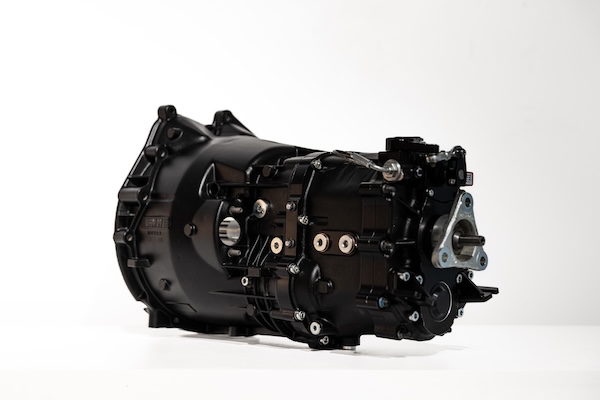

ZF SEQUENTIAL DOGBOX TRANSMISSION
GearMotive is proud to unveil our latest innovation, the ZF Sequential Dogbox transmission. The result of years of dedicated development and testing on drifting and rally stages. Building on our long-standing tradition of manufacturing high-quality BMW ZF dogbox transmissions, this new product represents a significant leap forward in performance and technology.
GearMotive Sequential transmission for many racing purposes

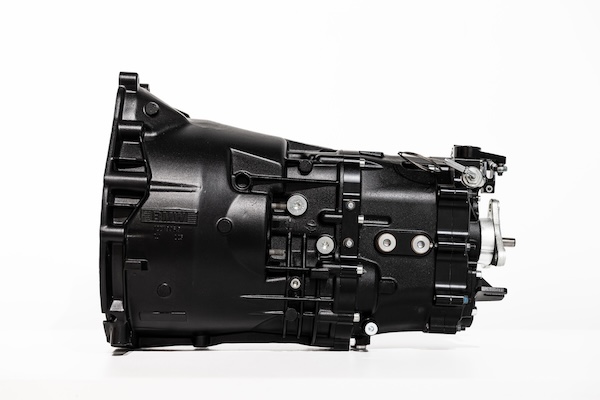

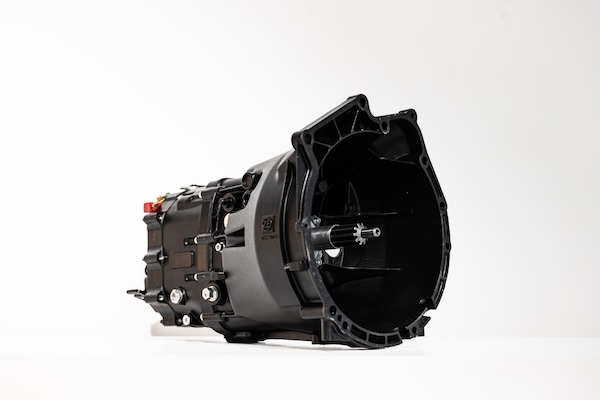

GearMotive ZF Sequential Dogbox transmission is based on our well-known H-pattern dogbox gearset. Our sequential transmission uses same type of gears and shafts, which have proven to work on various racing classes and being very famous product specially in Rally, Circuit and Drifting. The gearset is proven to work on over 1100Nm power in Drifting and Drag racing.

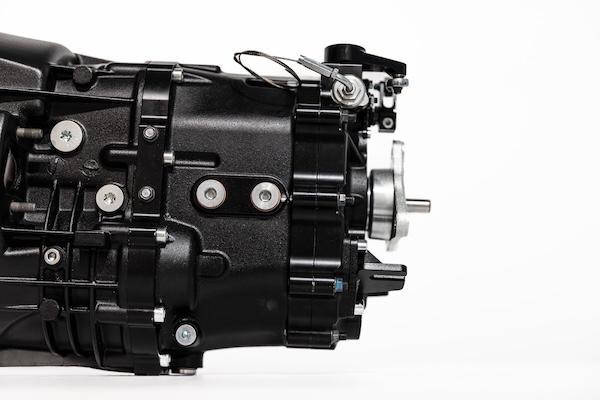

Now the gearset is combined with Sequential shifting mechanisms and housing providing even faster and more flawless gear changes. BMW ZF bell housing is mated with our custom manufactured rear housing, which measures to same dimensions than ZF stock rear housing. GearMotive ZF Sequential can be bolt-on to replace original BMW ZF S5D transmission. A sequential shifter is installed into the stock shifter position and is very easy installation.

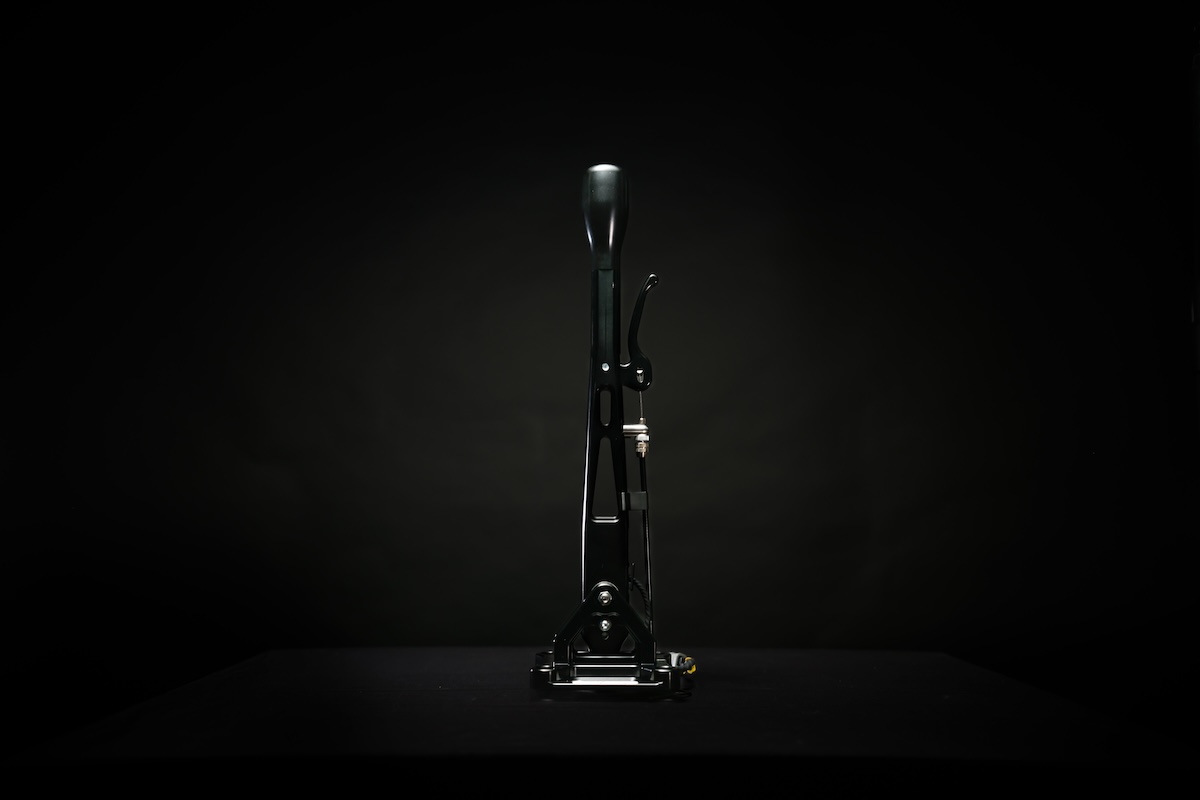

GearMotive Sequential shifter is self-centering, very sleak black design, made from high-quality aluminium material. The shifter has integrated shifcut sensors, providing an option to use flat shifting.
A Gear Display is made from a multi-color touch screen display. The display shows the gear position and allows configuring various options, such as shift cut sensitivity.

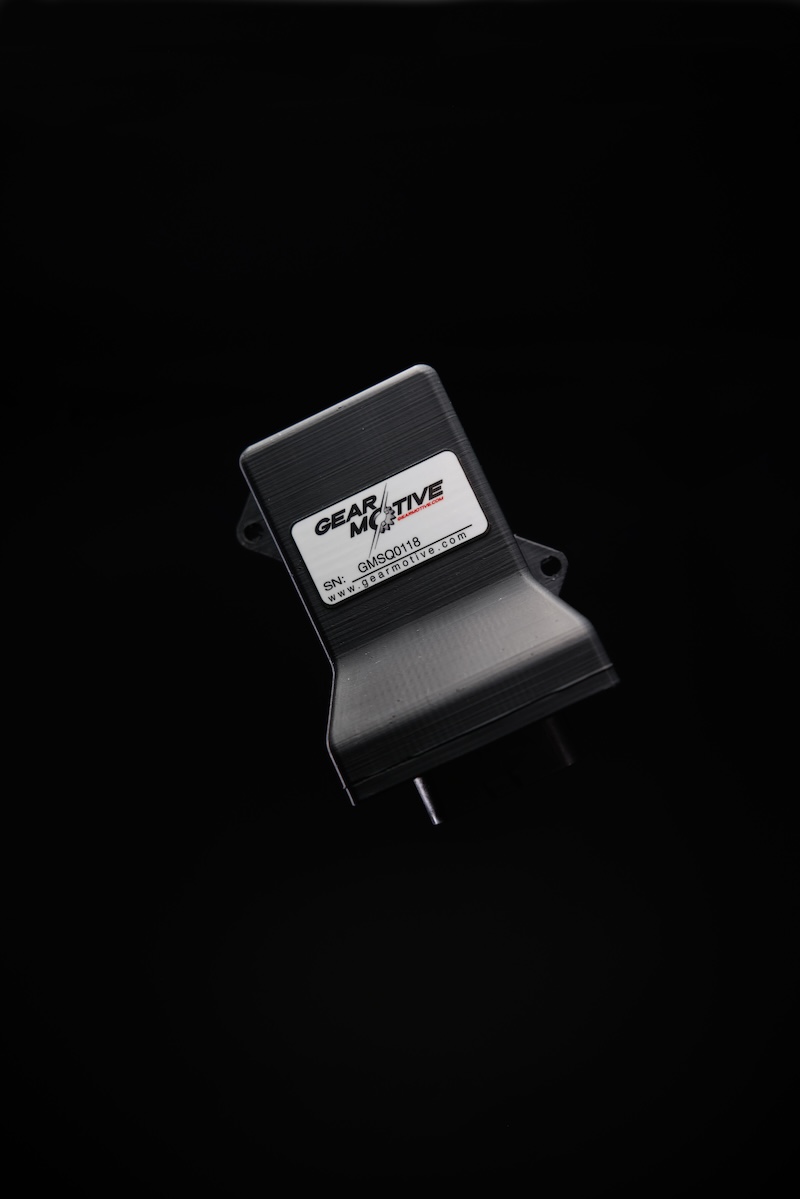

GearMotive Sequential Electronic Control Module (ECM) is a separate box having ready-made wiring kit. The wiring kit is installed to the shifter, gear position sensor, gear display, power source and possibly to an aftermarket ECU for shift cut and gear position info. The ECM will be able to control shift cut even for car’s with stock ECU (future option).
For high power vehicles (over 500hp), we offer a heavy-duty HD input shaft option.
Check our reference page and videos how customers use the gearboxes.
Read futher article about ZF Sequential Dogbox in our Blog page
Sequential Gearbox Features and Pricing
- 5 Speed Sequential Dogbox gearset
- Patented design to improve power handling capabilities
- Extremely strong gearing, straight cut gears.
Straight 1:1 5th gear ratio provides silent cruising and no power loss. - Uses ZF S5D OEM bell housing and is a bolt-on Fitment to replace BMW ZF S5D transmission
- Gear position sensor is included in the gearbox
- Weight with bell housing appr. 38kg
- Two Ratio options:
- Ratio set 1 for Rally / Circuit, (Long 1st gear, smaller drop between gears):
Gear ratios 1-5: 2.23, 1.71, 1.38, 1.16, 1.00 - Ratio set 2 for Drift / Drag / Rallycross (Longish 1st gear, bigger drop between gears):
Gear ratios 1-5: 2.73, 1.83, 1.42, 1.16, 1.00 - Pricing (exclusive VAT, VAT0%):
- Sequential gearkit and rear housing: 6900Eur
- Bell housing installation in GearMotive: 290Eur
- Sequential Shifter 590Eur with shift cut 790Eur
- Display with ECM and wiring kit 390Eur
- Bell housing, Petrol 310z/320z 790Eur, Diesel 260z/280z 590Eur
- Check all options below.
ZF SEQUENTIAL dogbox options
ZF Sequential Options

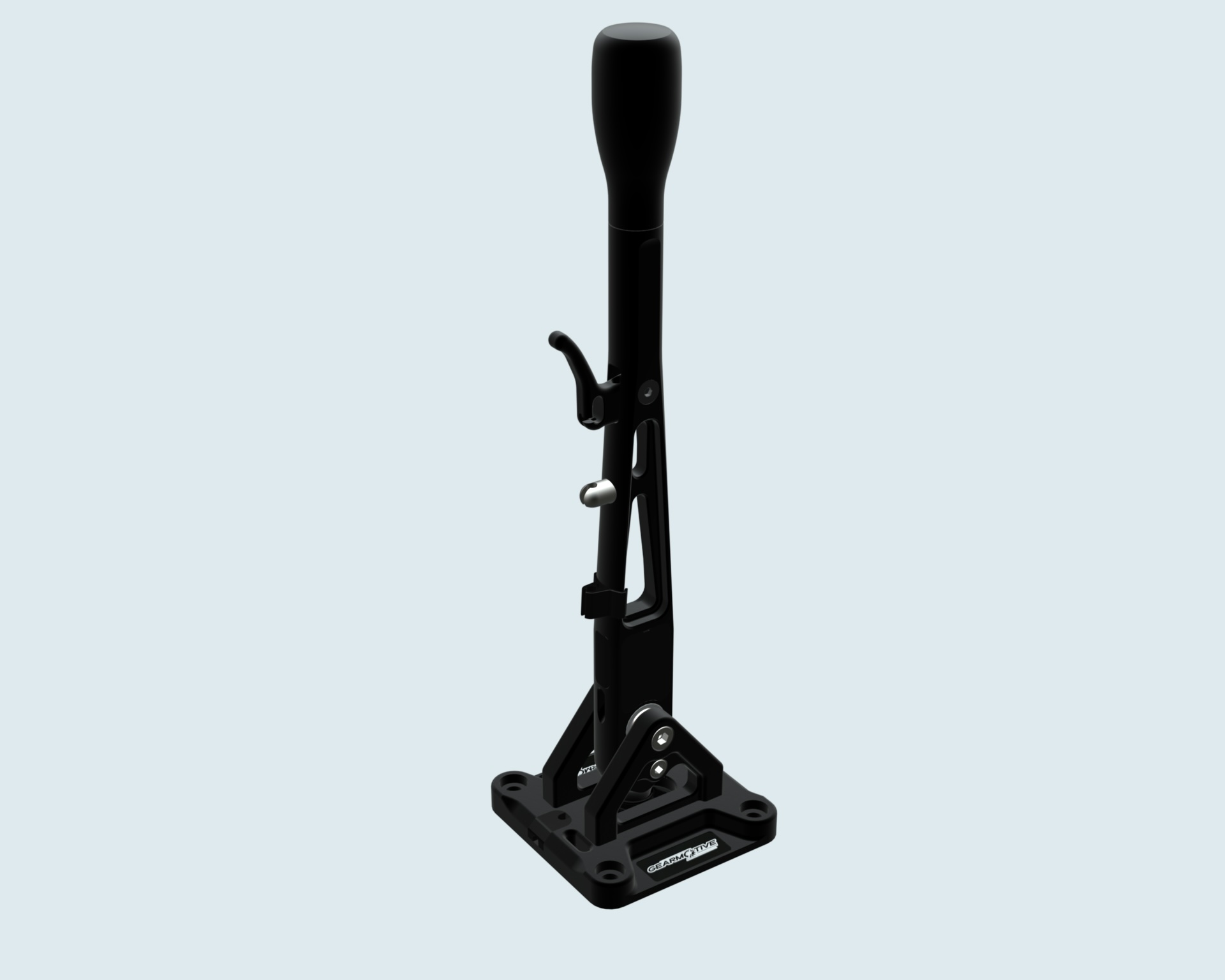

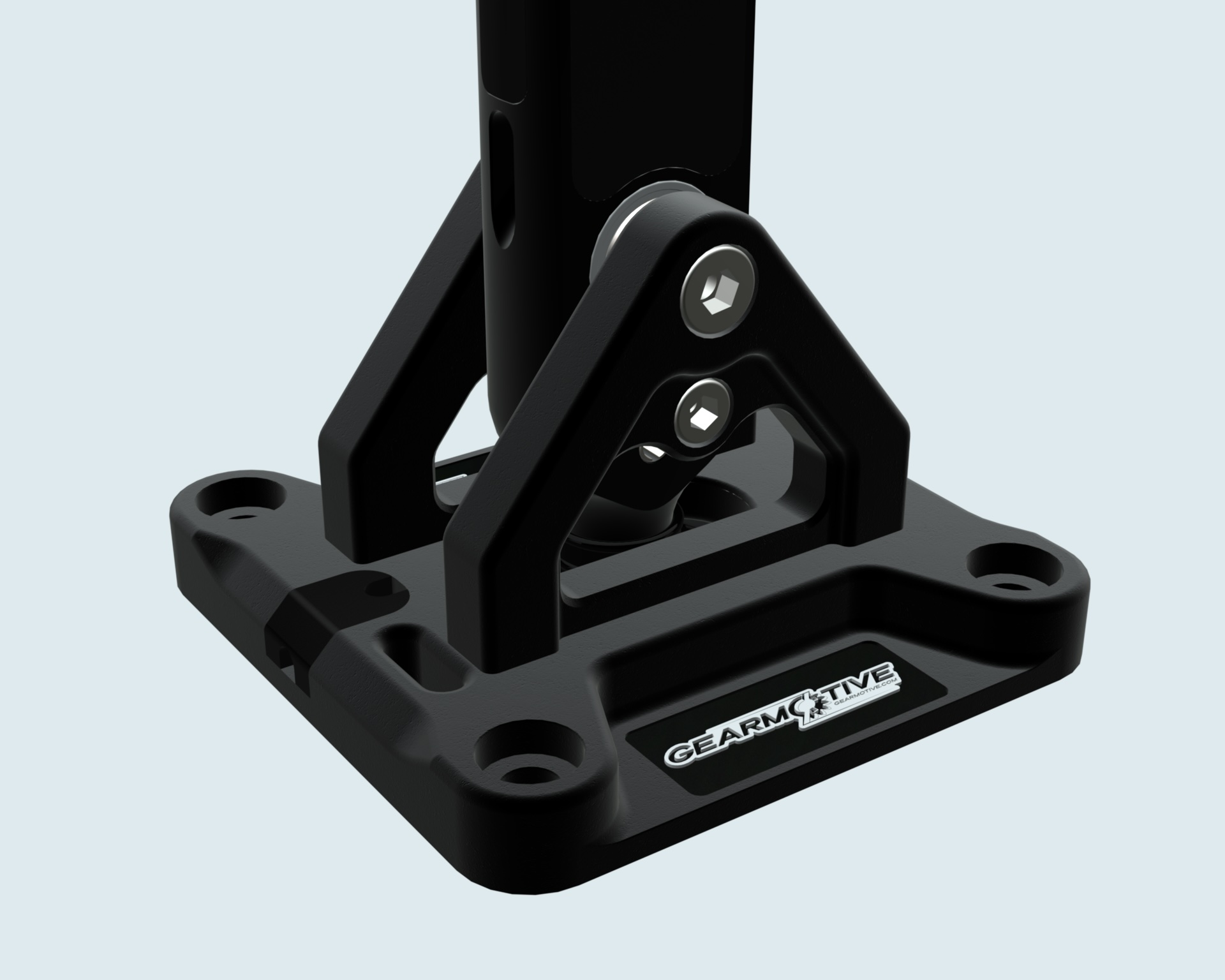

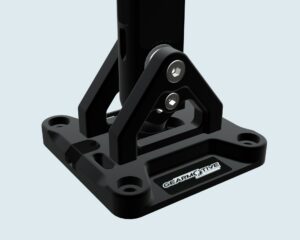

SEQUENTIAL Shifter
Sequential shifter for GearMotive ZF Sequential gearbox
- Integrated shift cut option available
- Handle for engaging N/R-gears
- Self-centering
- Billet manufactured from high-strength aluminium alloy
- Light weight
- Very easy installation
- PRICE: Sequential Shifter 590Eur with shift cut 790Eur

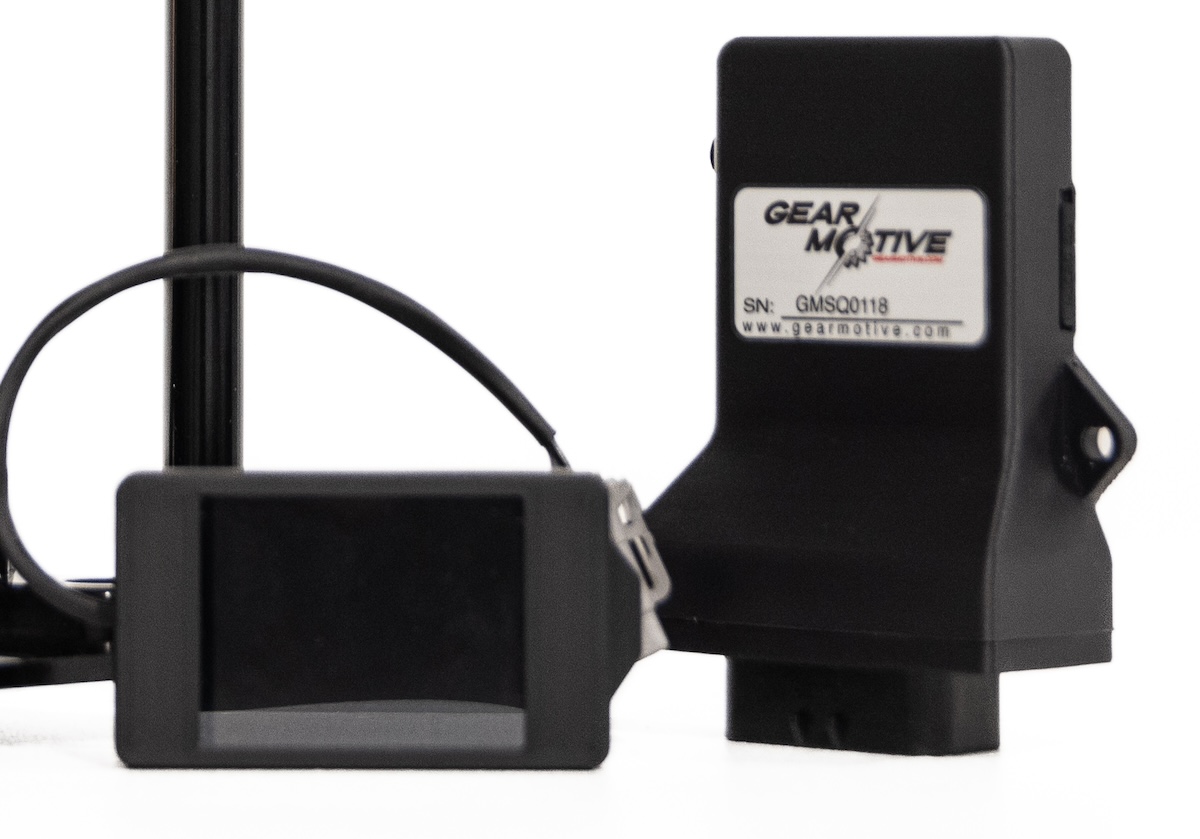

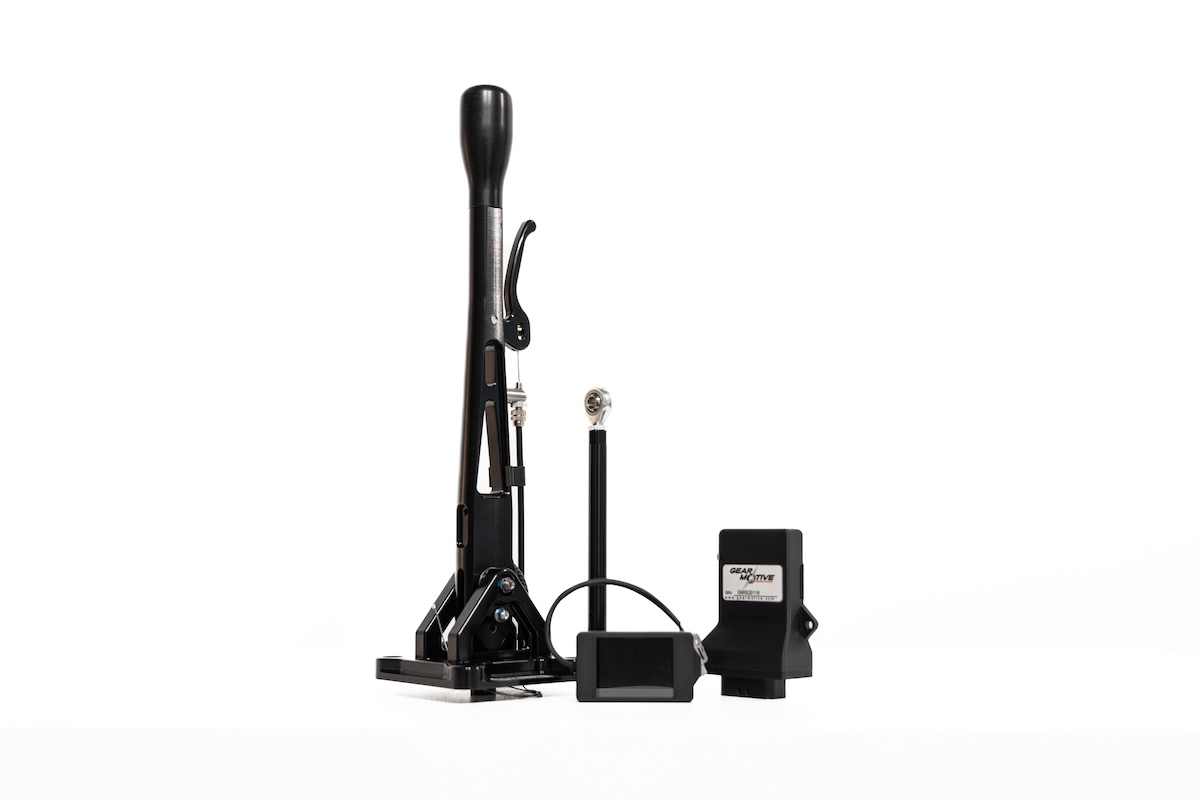

Electric kit (Display, ECM, wiring)
Electric kit comes with: a touch screen display, ECM (Electric Control Module) and wiring kit.
- Display shows the current gear position, and offers configuring options for gear position and shift cut adjusting
- ECM is a control box combining the functions of display and shifter.
ECM can be also wired into the after market ECU for gear display or shift cut functionality
UPCOMING: ECM Will be able to control shift cut for stock ECUs - Wiring kit is very easy to install with ready made wires and connectors. Wiring kit combines Gearbox, Shifter, Display and ECM together
- PRICE: Display, ECM and wiring kit 390Eur

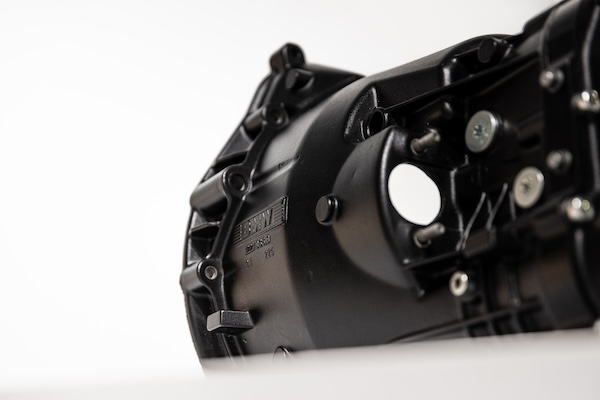

bell housing
ZF Sequential dogbox requires ZF S5D model bell housing to fit it into the engine. ZF Sequential is designed in a such way that bell housing is a part of the gearbox and oil space. This has allowed us to make the gearbox so small and is a bolt on to replace S5D stock box or existing GearMotive ZF dogboxes.
- ZF Sequential can be mated with any ZF S5D bellhousing. Suitable bell housing models are (Number in bell housing):
Petrol models:
S5D-310Z “ZF 1053401 097”
S5D-310Z “ZF 1053401 107”
S5D-320Z “ZF 1053401 148”
S5D-320Z “ZF 1053401 131”
S5D-320Z “ZF 1053401 089”
Diesel models:
S5D-260Z “ZF 1053401 098”
S5D-260Z “ZF 1053401 187”
S5D-280Z “ZF 1053401 146”
S5D-280Z “ZF 1053401 127” - Customer can deliver own bell housing to GearMotive/eseller for installation or purchase one from GearMotive. “Certain stock parts are necessary to deliver together with the bell housing”.
- PRICE: Petrol 790Eur, Diesel 590Eur

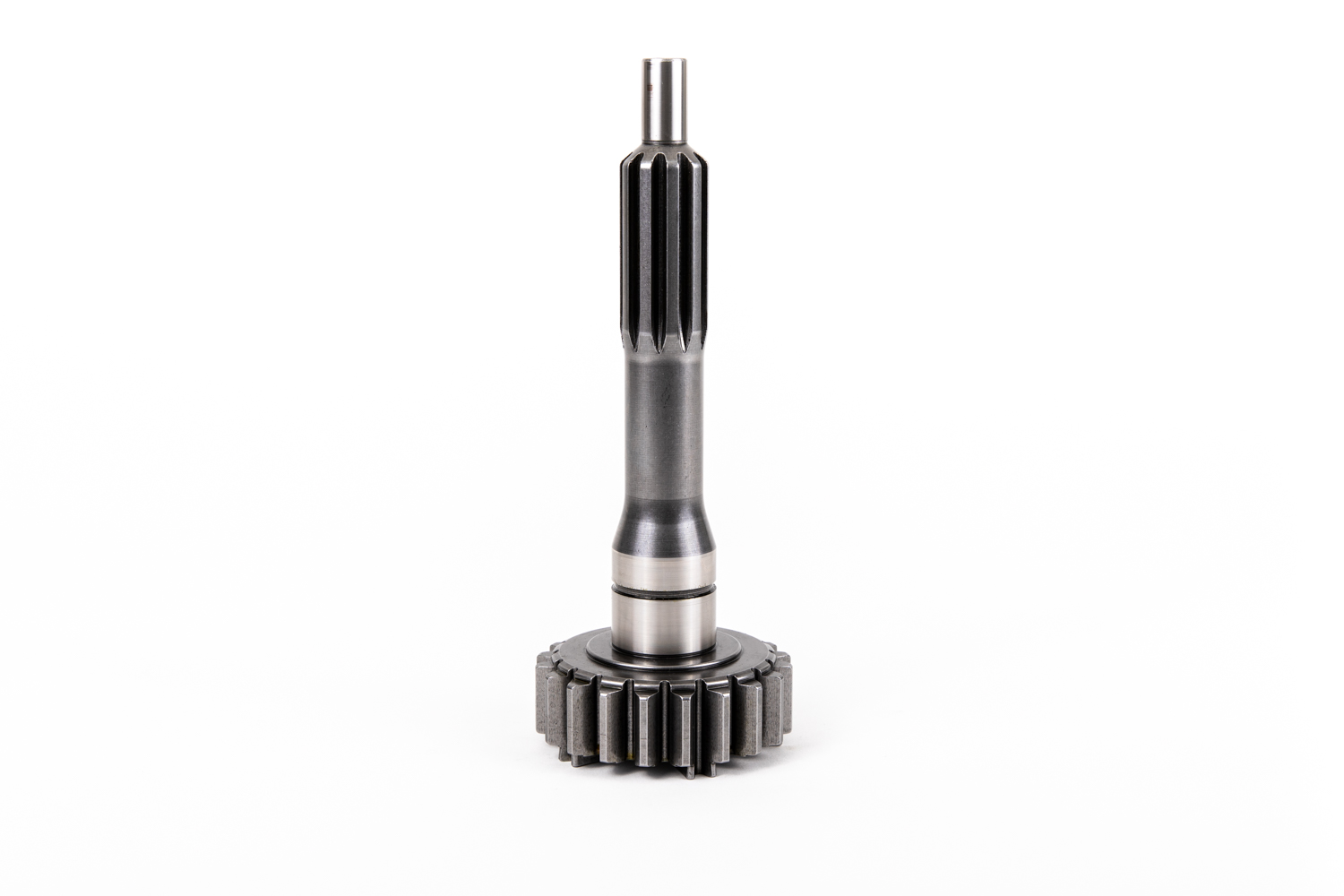

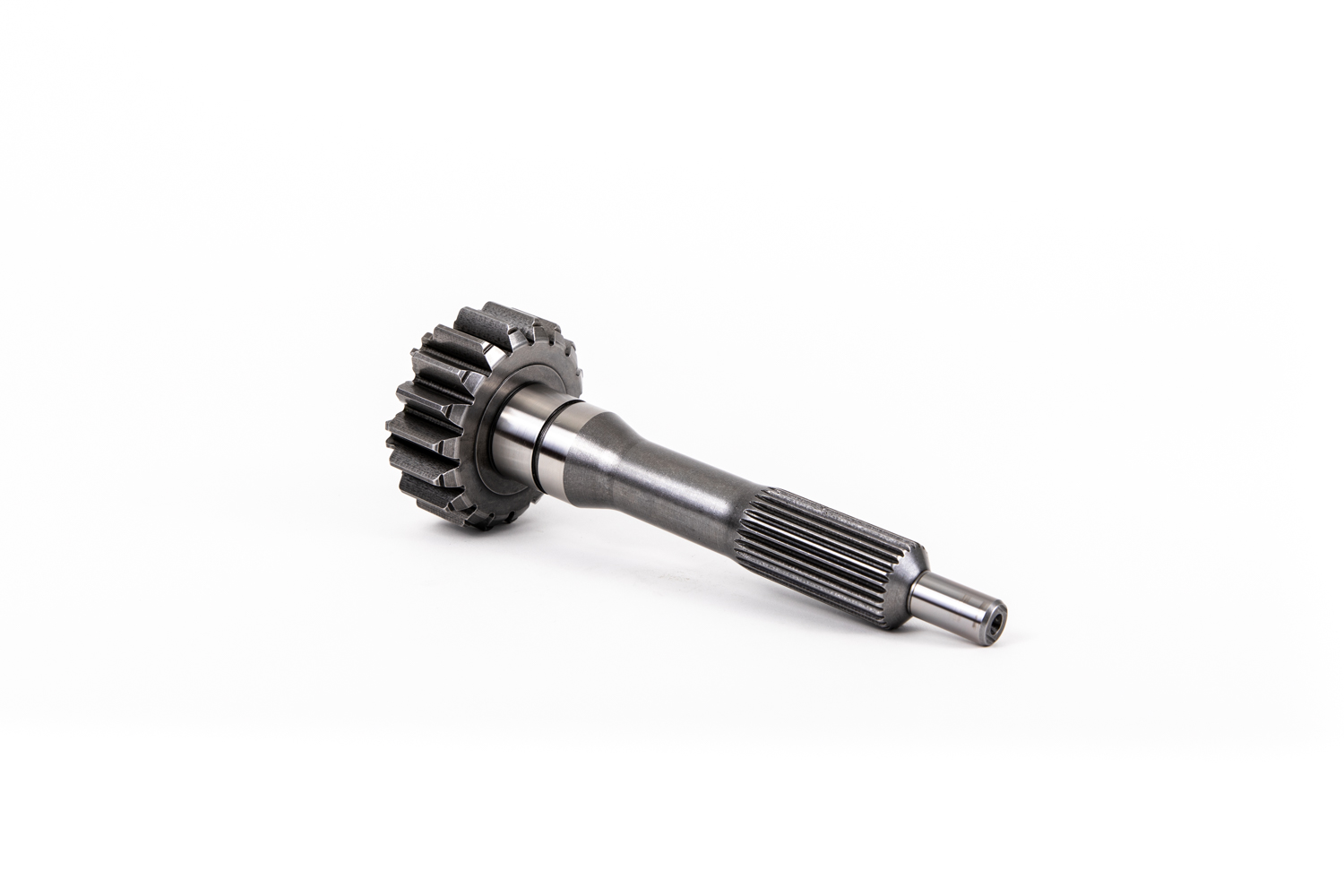

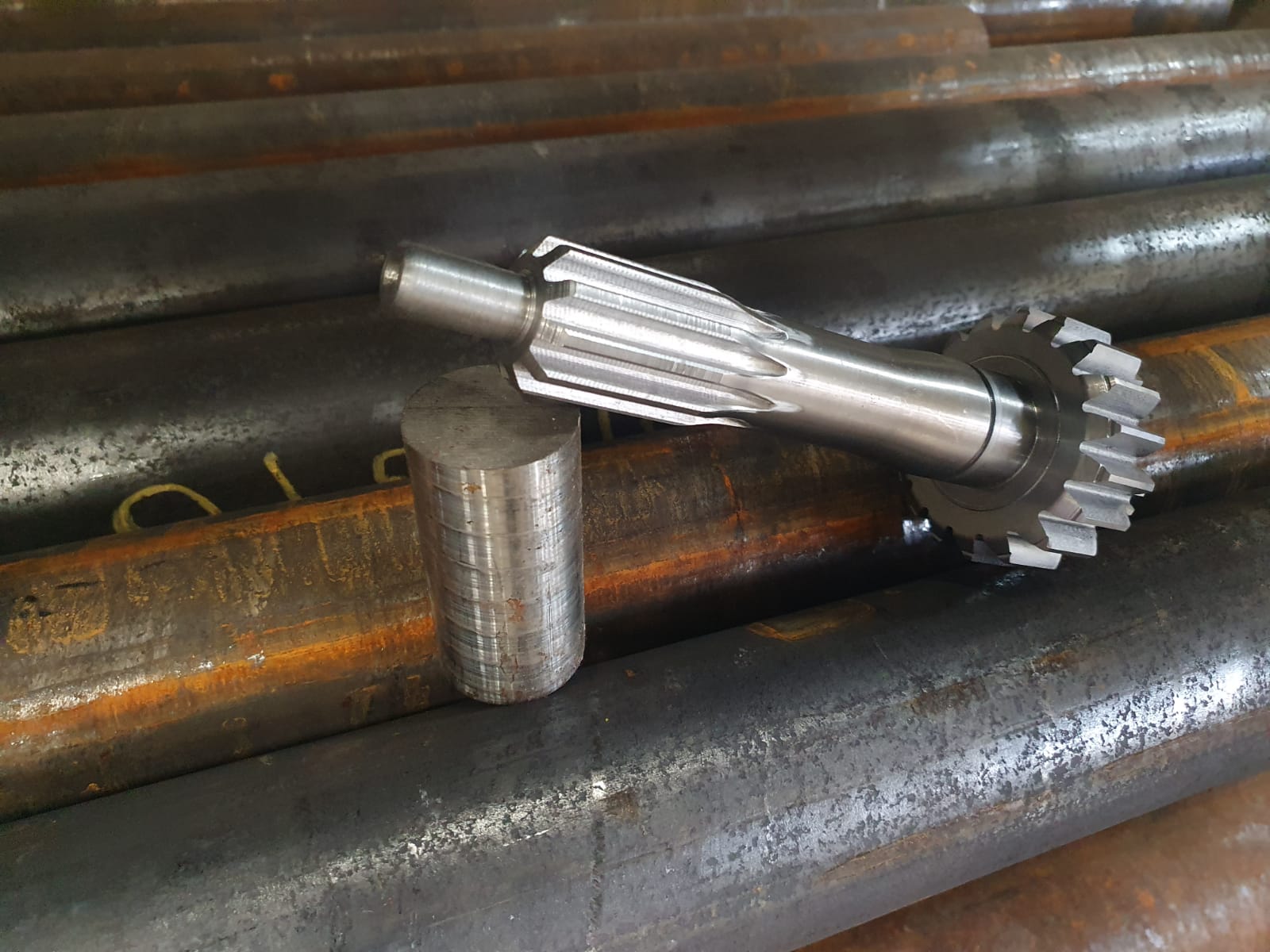

Heavy Duty (HD) Shafts
Heavy duty input shaft for high powered vehicles (over 500Hp/Nm)
Z10 35mm spline (ZF GS5-39/420G box spline)
- PRICE: HD input shaft 250Eur
(Extra cost for the shaft upgrade together with box purchase)

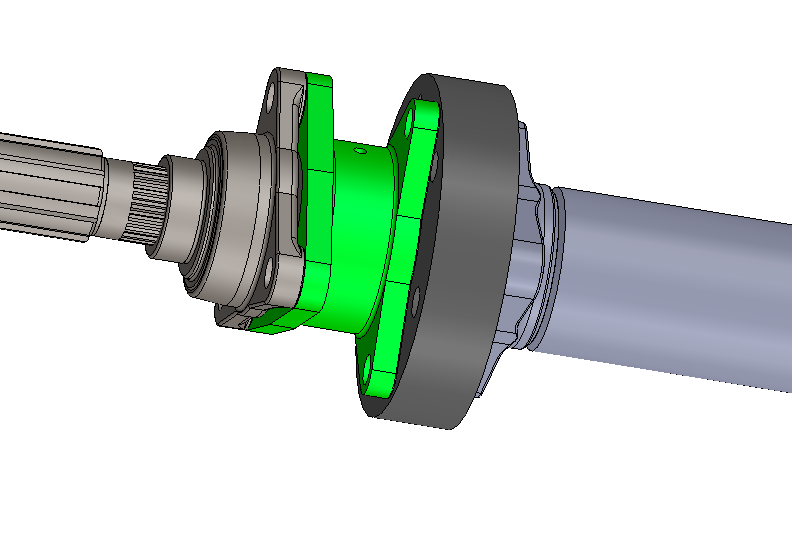

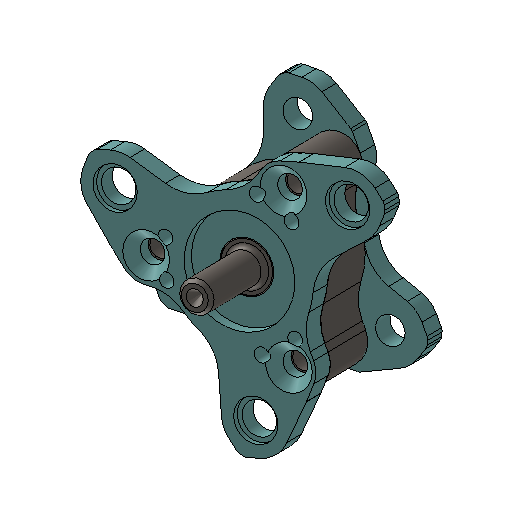

Propeller shaft adapter
Prop adapter for easier fitment or replacement of existing gearbox with GearMotive ZF S5D model dogbox.
Please, request more information and tell us your current box model and yoke/prop shaft bolt pattern (78/96/105/110mm) and bolt dimension (12/14mm).
Check our youtube video:
Prop Adapter installation video
- PRICE: GS5-39 replacement adapter (PCD 96/105/110) 290Eur
- Price: Getrag replacement adapter (PCD 78mm) 90Eur

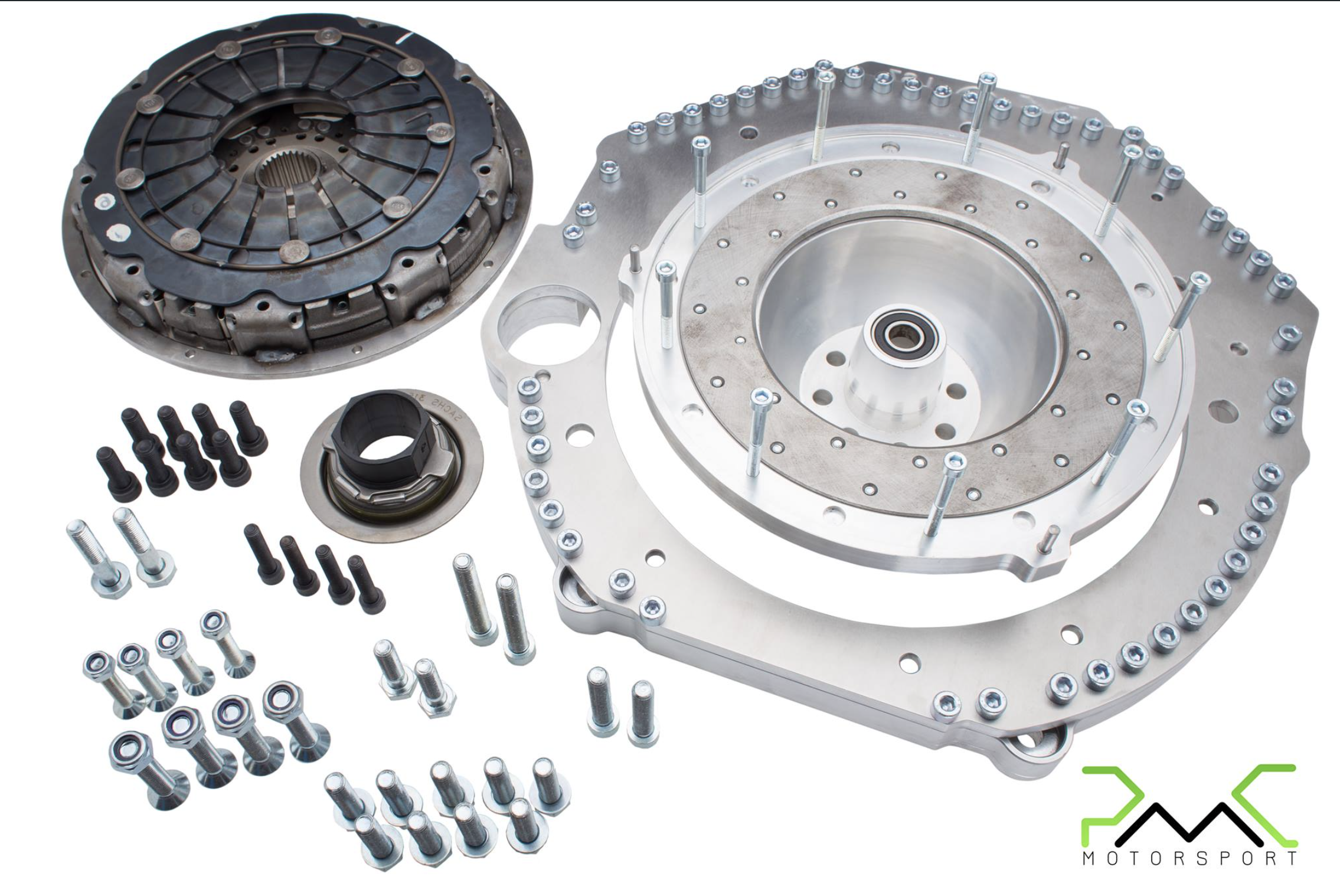

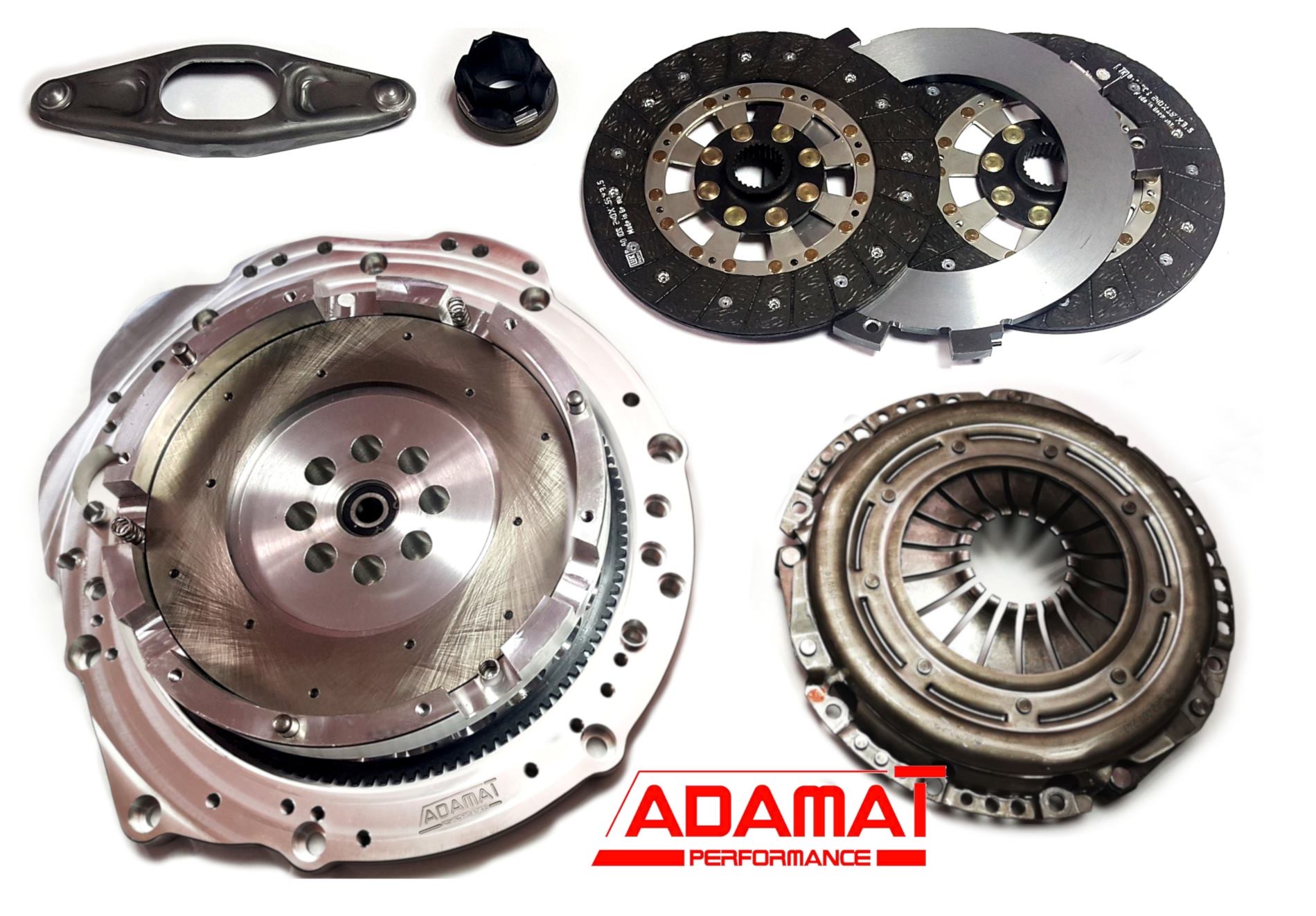

Engine adapter
GearMotive can offer engine adapters from variety of our partners. Please, inform us your need for engine adapter and clutch kit, so we can source you a suitable adapter kit together with dogbox upgrade. Any engine type can be fitted to any transmission with an adapter kit!
We can also offer or recommend bell housing welding fitments from our partners.
- PRICE: Adapter kit (800-1500Eur)
- PRICE: Welded bell housing modification starting at 400Eur
SEQUENTIAL Shifter
Sequential shifter for GearMotive ZF Sequential gearbox
- Integrated shift cut option available
- Handle for engaging N/R-gears
- Self-centering
- Billet manufactured from high-strength aluminium alloy
- Light weight
- Very easy installation
- PRICE: Sequential Shifter 590Eur with shift cut 790Eur
Electric kit (Display, ECM, wiring)
Electric kit comes with: a touch screen display, ECM (Electric Control Module) and wiring kit.
- Display shows the current gear position, and offers configuring options for gear position and shift cut adjusting
- ECM is a control box combining the functions of display and shifter.
ECM can be also wired into the after market ECU for gear display or shift cut functionality
UPCOMING: ECM Will be able to control shift cut for stock ECUs - Wiring kit is very easy to install with ready made wires and connectors. Wiring kit combines Gearbox, Shifter, Display and ECM together
- PRICE: Display, ECM and wiring kit 390Eur
bell housing
ZF Sequential dogbox requires ZF S5D model bell housing to fit it into the engine. ZF Sequential is designed in a such way that bell housing is a part of the gearbox and oil space. This has allowed us to make the gearbox so small and is a bolt on to replace S5D stock box or existing GearMotive ZF dogboxes.
- ZF Sequential can be mated with any ZF S5D bellhousing. Suitable bell housing models are (Number in bell housing):
Petrol models:
S5D-310Z “ZF 1053401 097”
S5D-310Z “ZF 1053401 107”
S5D-320Z “ZF 1053401 148”
S5D-320Z “ZF 1053401 131”
S5D-320Z “ZF 1053401 089”
Diesel models:
S5D-260Z “ZF 1053401 098”
S5D-260Z “ZF 1053401 187”
S5D-280Z “ZF 1053401 146”
S5D-280Z “ZF 1053401 127” - Customer can deliver own bell housing to GearMotive/eseller for installation or purchase one from GearMotive. “Certain stock parts are necessary to deliver together with the bell housing”.
- PRICE: Petrol 790Eur, Diesel 590Eur
Heavy Duty (HD) Shafts
Heavy duty input shaft for high powered vehicles (over 500Hp/Nm)
Z10 35mm spline (ZF GS5-39/420G box spline)
- PRICE: HD input shaft 250Eur
(Extra cost for the shaft upgrade together with box purchase)
Propeller shaft adapter
Prop adapter for easier fitment or replacement of existing gearbox with GearMotive ZF S5D model dogbox.
Please, request more information and tell us your current box model and yoke/prop shaft bolt pattern (78/96/105/110mm) and bolt dimension (12/14mm).
Check our youtube video:
Prop Adapter installation video
- PRICE: GS5-39 replacement adapter (PCD 96/105/110) 290Eur
- Price: Getrag replacement adapter (PCD 78mm) 90Eur
Engine adapter
GearMotive can offer engine adapters from variety of our partners. Please, inform us your need for engine adapter and clutch kit, so we can source you a suitable adapter kit together with dogbox upgrade. Any engine type can be fitted to any transmission with an adapter kit!
We can also offer or recommend bell housing welding fitments from our partners.
- PRICE: Adapter kit (800-1500Eur)
- PRICE: Welded bell housing modification starting at 400Eur
Ask for a quote or request more information
Only asterisk (*) marked are mandatory
Assembly and further information
Prices are exclusive taxes and import duties, no shipping is included in pricing.
